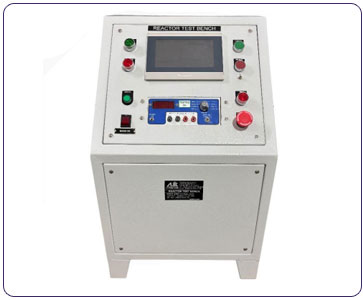

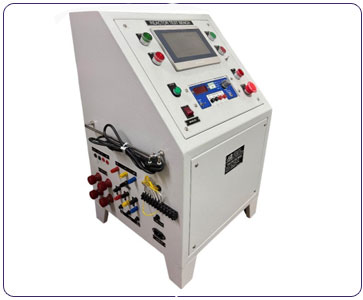

The Reactor Test Bench is a versatile and user-friendly testing solution designed for accurate measurement and analysis of electrical parameters in reactors, transformers, and other AC components. Built with advanced digital instrumentation and data logging capabilities, it ensures high precision and ease of operation for laboratory and production environments.
Technical Specifications:
1. Power Supply
» Auxiliary Supply: 230 V AC, Single Phase, 50 Hzl» Measurement Parameters
| Parameter | Range / Description |
|---|---|
| Voltage Basic | 2 V to 300 V (Phase to Neutral, Single Phase) |
| Current Basic | 100 mA to 5 A (Max) |
| CT Ratio | Programmable / Settable for 1A / 5A to 10,000A any value |
| PT Ratio | Programmable / Settable for 100V to 500kV any value |
| Impedance | Automatic calculation & display |
| Frequency | Measured for voltages above 4 V |
| Temperature | Digital temperature measurement facility |
| Resistance | Direct measurement with precision accuracy in eight ranges |
| Losses | Real-time measurement of system losses (I²R) |
| Active Power (kW) | True RMS measurement |
| Apparent Power (kVA) | Calculated and displayed |
| Reactive Power (kVAR) | Calculated and displayed |
| Power Factor | Automatic computation |
Data Entry & Display:
User Input Fields:
» Purchase Order (PO) No.» Item Model No.
» Serial No.
» Item Details.
Display Type:
» 7-inch TFT Touch Screen (16:9 aspect ratio)» High-resolution color display for real-time data visualization
Data Storage & Reporting
» Built-in data logging with date and time stamping
» Test results and user-entered data automatically stored in the data log.
» USB port for data download to pen drive
» Data files compatible with Microsoft Excel (.xls/.csv format)
Key Features
» Compact and rugged design for industrial use
» High accuracy measurement instruments
» Programmable CT & PT ratio settings
» User-friendly graphical interface with touch screen control
» Real-time monitoring of electrical and thermal parameters
» Reliable data storage and USB data transfer
» Ideal for testing reactors, transformers, and inductive components etc.
Applications
» Electrical test laboratories
» Transformer and reactor manufacturing units
» Quality control and inspection departments
» Educational and R&D institutions
Optional Features (on request)
» PC connectivity via RS-485
» Thermal printer for instant report printing
» Extended current and voltage range customization
» Any other measurement parameter and automation As per customer Requirement we customized the instrument.
